Advanced structural ceramics, because of their unique crystal structure and chemical bond attributes, show efficiency benefits that metals and polymer products can not match in extreme atmospheres. Alumina (Al ₂ O ₃), zirconium oxide (ZrO ₂), silicon carbide (SiC) and silicon nitride (Si five N ₄) are the four significant mainstream design ceramics, and there are essential differences in their microstructures: Al ₂ O six comes from the hexagonal crystal system and counts on solid ionic bonds; ZrO two has three crystal kinds: monoclinic (m), tetragonal (t) and cubic (c), and obtains special mechanical homes through stage change strengthening device; SiC and Si Four N four are non-oxide porcelains with covalent bonds as the primary part, and have stronger chemical stability. These architectural distinctions straight result in substantial differences in the preparation process, physical residential or commercial properties and design applications of the four. This post will methodically examine the preparation-structure-performance partnership of these four porcelains from the viewpoint of products science, and discover their prospects for industrial application.

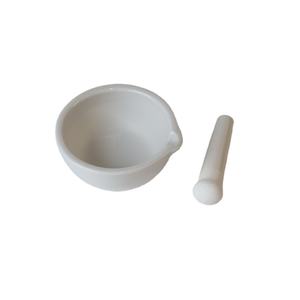

(Alumina Ceramic)

Prep work procedure and microstructure control

In regards to preparation procedure, the four porcelains show noticeable differences in technological routes. Alumina ceramics make use of a relatively typical sintering procedure, typically making use of α-Al two O two powder with a purity of greater than 99.5%, and sintering at 1600-1800 ° C after dry pushing. The key to its microstructure control is to prevent abnormal grain development, and 0.1-0.5 wt% MgO is typically included as a grain limit diffusion prevention. Zirconia ceramics need to introduce stabilizers such as 3mol% Y ₂ O ₃ to keep the metastable tetragonal phase (t-ZrO two), and utilize low-temperature sintering at 1450-1550 ° C to avoid excessive grain growth. The core procedure challenge hinges on accurately regulating the t → m phase change temperature window (Ms point). Since silicon carbide has a covalent bond proportion of up to 88%, solid-state sintering requires a high temperature of more than 2100 ° C and depends on sintering help such as B-C-Al to create a fluid phase. The response sintering method (RBSC) can accomplish densification at 1400 ° C by penetrating Si+C preforms with silicon melt, yet 5-15% free Si will certainly stay. The preparation of silicon nitride is one of the most complex, generally utilizing GPS (gas pressure sintering) or HIP (warm isostatic pushing) procedures, adding Y TWO O TWO-Al ₂ O four collection sintering aids to create an intercrystalline glass stage, and warmth treatment after sintering to crystallize the glass stage can dramatically improve high-temperature performance.

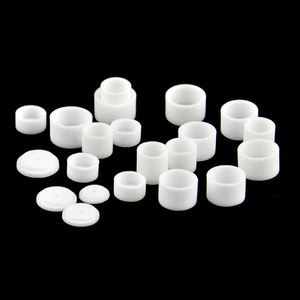

( Zirconia Ceramic)

Comparison of mechanical buildings and reinforcing mechanism

Mechanical residential or commercial properties are the core evaluation signs of architectural porcelains. The 4 types of materials reveal completely various conditioning devices:

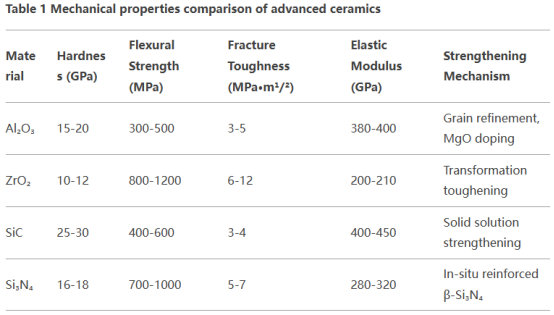

( Mechanical properties comparison of advanced ceramics)

Alumina generally counts on great grain strengthening. When the grain dimension is minimized from 10μm to 1μm, the toughness can be increased by 2-3 times. The excellent durability of zirconia comes from the stress-induced phase transformation device. The stress and anxiety field at the split idea sets off the t → m phase change come with by a 4% volume development, causing a compressive stress and anxiety securing result. Silicon carbide can improve the grain border bonding toughness via solid remedy of elements such as Al-N-B, while the rod-shaped β-Si ₃ N ₄ grains of silicon nitride can generate a pull-out result similar to fiber toughening. Break deflection and bridging add to the enhancement of strength. It deserves noting that by constructing multiphase ceramics such as ZrO ₂-Si Three N ₄ or SiC-Al Two O FIVE, a variety of toughening devices can be coordinated to make KIC go beyond 15MPa · m 1ST/ TWO.

Thermophysical properties and high-temperature actions

High-temperature security is the vital advantage of structural porcelains that identifies them from standard materials:

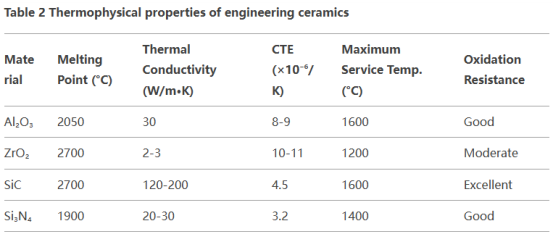

(Thermophysical properties of engineering ceramics)

Silicon carbide shows the most effective thermal management performance, with a thermal conductivity of up to 170W/m · K(comparable to light weight aluminum alloy), which results from its easy Si-C tetrahedral framework and high phonon proliferation rate. The reduced thermal growth coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have outstanding thermal shock resistance, and the crucial ΔT worth can get to 800 ° C, which is particularly appropriate for duplicated thermal cycling environments. Although zirconium oxide has the highest melting factor, the conditioning of the grain border glass phase at high temperature will certainly trigger a sharp drop in toughness. By embracing nano-composite technology, it can be enhanced to 1500 ° C and still keep 500MPa strength. Alumina will experience grain border slip over 1000 ° C, and the enhancement of nano ZrO ₂ can develop a pinning impact to prevent high-temperature creep.

Chemical security and deterioration actions

In a destructive environment, the four sorts of ceramics exhibit significantly various failing devices. Alumina will certainly liquify externally in strong acid (pH <2) and strong alkali (pH > 12) remedies, and the deterioration rate rises tremendously with increasing temperature level, reaching 1mm/year in steaming focused hydrochloric acid. Zirconia has great resistance to inorganic acids, yet will certainly undertake low temperature degradation (LTD) in water vapor atmospheres over 300 ° C, and the t → m stage shift will bring about the formation of a microscopic fracture network. The SiO ₂ safety layer formed on the surface area of silicon carbide offers it superb oxidation resistance listed below 1200 ° C, but soluble silicates will certainly be generated in molten antacids metal settings. The deterioration behavior of silicon nitride is anisotropic, and the corrosion rate along the c-axis is 3-5 times that of the a-axis. NH Four and Si(OH)₄ will be created in high-temperature and high-pressure water vapor, bring about product bosom. By maximizing the make-up, such as preparing O’-SiAlON ceramics, the alkali rust resistance can be enhanced by more than 10 times.

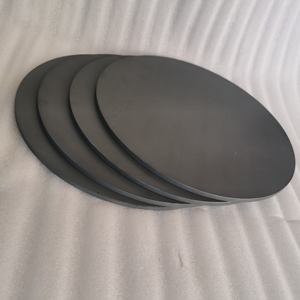

( Silicon Carbide Disc)

Normal Engineering Applications and Instance Studies

In the aerospace area, NASA uses reaction-sintered SiC for the leading edge elements of the X-43A hypersonic aircraft, which can hold up against 1700 ° C wind resistant home heating. GE Aeronautics makes use of HIP-Si three N four to produce turbine rotor blades, which is 60% lighter than nickel-based alloys and enables greater operating temperatures. In the clinical area, the crack strength of 3Y-TZP zirconia all-ceramic crowns has actually gotten to 1400MPa, and the life span can be included greater than 15 years through surface gradient nano-processing. In the semiconductor sector, high-purity Al two O six porcelains (99.99%) are made use of as tooth cavity materials for wafer etching equipment, and the plasma rust price is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.

Technical challenges and development trends

The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm parts < 0.1 mm ), and high manufacturing cost of silicon nitride(aerospace-grade HIP-Si five N four reaches $ 2000/kg). The frontier growth instructions are focused on: ① Bionic framework layout(such as covering split framework to raise durability by 5 times); two Ultra-high temperature level sintering technology( such as spark plasma sintering can achieve densification within 10 mins); two Smart self-healing porcelains (including low-temperature eutectic stage can self-heal fractures at 800 ° C); ④ Additive production modern technology (photocuring 3D printing accuracy has actually reached ± 25μm).

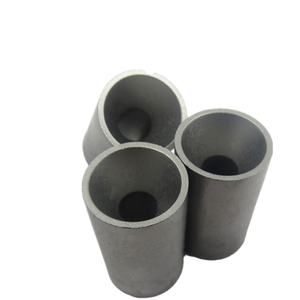

( Silicon Nitride Ceramics Tube)

Future advancement patterns

In an extensive contrast, alumina will certainly still dominate the conventional ceramic market with its expense advantage, zirconia is irreplaceable in the biomedical area, silicon carbide is the preferred material for extreme environments, and silicon nitride has terrific prospective in the area of premium devices. In the next 5-10 years, through the integration of multi-scale architectural regulation and intelligent production technology, the performance limits of design ceramics are expected to attain brand-new innovations: for instance, the style of nano-layered SiC/C ceramics can attain toughness of 15MPa · m 1ST/ TWO, and the thermal conductivity of graphene-modified Al two O three can be increased to 65W/m · K. With the advancement of the “dual carbon” strategy, the application range of these high-performance ceramics in brand-new power (fuel cell diaphragms, hydrogen storage materials), green production (wear-resistant parts life enhanced by 3-5 times) and various other fields is anticipated to maintain an average annual growth price of greater than 12%.

Distributor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested in aluminum nitride cte, please feel free to contact us.(nanotrun@yahoo.com)

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

Silicon carbide, a compound of silicon and carbon, attracts attention for its hardness and durability. It discovers usage in several sectors due to its one-of-a-kind homes. This material can manage high temperatures and resist wear. Its applications range from electronic devices to automotive parts. This article checks out the possible and uses of silicon carbide.

(Silicon Carbide Powder)

Make-up and Manufacturing Refine

Silicon carbide is made by incorporating silicon and carbon. These aspects are warmed to extremely high temperatures.

The process begins with mixing silica sand and carbon in a furnace. The combination is heated up to over 2000 degrees Celsius. At these temperatures, the products respond to form silicon carbide crystals. These crystals are then crushed and arranged by size. Various dimensions have different usages. The outcome is a flexible material all set for various applications.

Applications Throughout Various Sectors

Power Electronics

In power electronic devices, silicon carbide is made use of in semiconductors. It can handle greater voltages and run at greater temperature levels than typical silicon. This makes it suitable for electric vehicles and renewable energy systems. Instruments made with silicon carbide are extra reliable and smaller sized in dimension. This saves space and enhances performance.

Automotive Sector

The automotive sector uses silicon carbide in braking systems and engine parts. It stands up to wear and heat far better than various other products. Silicon carbide brake discs last much longer and perform far better under severe conditions. In engines, it helps in reducing rubbing and increase effectiveness. This causes far better gas economy and lower exhausts.

Aerospace and Defense

In aerospace and protection, silicon carbide is utilized in armor plating and thermal security systems. It can hold up against high influences and severe temperature levels. This makes it perfect for safeguarding airplane and spacecraft. Silicon carbide also helps in making light-weight yet solid parts. This reduces weight and enhances haul ability.

Industrial Uses

Industries make use of silicon carbide in cutting devices and abrasives. Its firmness makes it ideal for reducing hard materials like steel and rock. Silicon carbide grinding wheels and cutting discs last much longer and cut faster. This boosts performance and reduces downtime. Manufacturing facilities likewise utilize it in refractory cellular linings that protect furnaces and kilns.

(Silicon Carbide Powder)

Market Trends and Development Drivers: A Progressive Viewpoint

Technical Advancements

New modern technologies improve just how silicon carbide is made. Much better producing techniques lower expenses and increase high quality. Advanced screening lets producers examine if the materials work as expected. This assists develop better products. Firms that adopt these modern technologies can offer higher-quality silicon carbide.

Renewable Resource Need

Expanding need for renewable energy drives the demand for silicon carbide. Photovoltaic panel and wind turbines make use of silicon carbide components. They make these systems much more efficient and reputable. As the world shifts to cleaner power, making use of silicon carbide will expand.

Consumer Awareness

Customers now recognize extra regarding the advantages of silicon carbide. They look for products that utilize it. Brand names that highlight the use of silicon carbide draw in even more consumers. People trust items that are more secure and last much longer. This pattern increases the marketplace for silicon carbide.

Challenges and Limitations: Navigating the Course Forward

Expense Issues

One challenge is the expense of making silicon carbide. The procedure can be costly. However, the advantages typically surpass the costs. Products made with silicon carbide last longer and do much better. Business must reveal the worth of silicon carbide to warrant the cost. Education and marketing can help.

Security Problems

Some fret about the safety and security of silicon carbide. Dust from cutting or grinding can trigger wellness issues. Research study is continuous to guarantee secure handling practices. Rules and guidelines help control its use. Firms need to follow these regulations to secure employees. Clear interaction about security can build trust.

Future Potential Customers: Developments and Opportunities

The future of silicon carbide looks promising. Much more research will find new methods to utilize it. Technologies in materials and innovation will enhance its efficiency. As industries seek better remedies, silicon carbide will play an essential duty. Its capability to handle heats and resist wear makes it useful. The continual advancement of silicon carbide guarantees interesting possibilities for growth.
